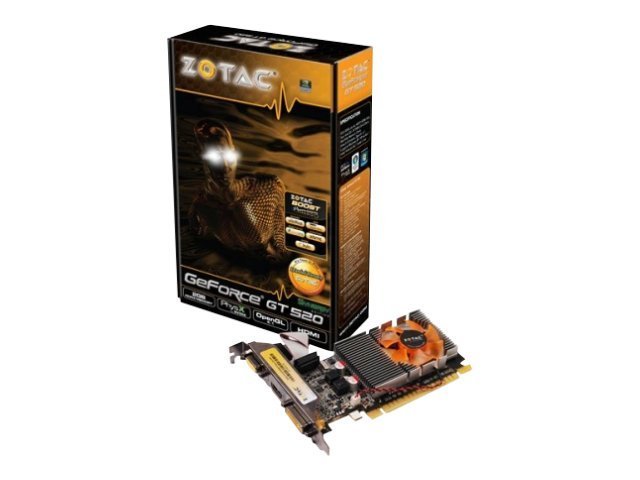

ZOTAC GeForce GT 520 (2 GB) Specifications, Tests and Review

Memory Size
2 GB

Memory Type
DDR3 SDRAM

Effective Memory Speed
1.066 GHz

Bus Width
64-bit

Core Clock
810 MHz

Max. Resolution
2560 x 1600

Required Power Supply
300 W

Power Consumption
29 Watt

Other Variants::

Get the key specs, technical data, benchmarks and full review of ZOTAC GeForce GT 520 (2 GB) all in one place. Compare your selected model with other alternatives and give your decision on the best GPU a solid base with our comprehensive overview.

ZOTAC GeForce GT 520 (2 GB) Full Specifications and Benchmark

general performance memory (ram) system requirements video output miscellaneous

GENERAL ZOTAC GeForce GT 520 (2 GB)

Product Type	Graphics card
Bus Type	PCI Express 2.0 x16
Graphics Engine	NVIDIA GeForce GT 520
Max. Resolution	2560 x 1600
RAMDAC	400 MHz
Interfaces	DVI-I (dual link) HDMI VGA
API Supported	DirectX 11, DirectCompute, OpenGL 4.1
Features	NVIDIA Unified Driver Architecture (UDA), Nvidia CUDA technology, Nvidia PureVideo HD technology, Nvidia PhysX-Ready, fan-cooled heatsink, Deep Color technology, Dolby True HD support, DTS-HD Master Audio support, HDCP

DIMENSIONS

Height	6.9 cm
Depth	14.5 cm

PERFORMANCE ZOTAC GeForce GT 520 (2 GB)

Core Clock (Frequency)	810 MHz

MEMORY (RAM) ZOTAC GeForce GT 520 (2 GB)

RAM Memory Size	2 GB
RAM Technology	DDR3 SDRAM
Effective Clock Speed (Frequency)	1.066 GHz
Bus Width	64-bit

SYSTEM REQUIREMENTS ZOTAC GeForce GT 520 (2 GB)

OS Required	Microsoft Windows Vista / XP / 7
Required Power Supply	300 W

VIDEO OUTPUT ZOTAC GeForce GT 520 (2 GB)

Supported Display Graphics	HDTV (1920x1080), 2560x1600

MISCELLANEOUS ZOTAC GeForce GT 520 (2 GB)

Included Accessories	2 low-profile brackets
Software Included	Drivers & Utilities, ZOTAC Boost Premium
Power Consumption Operational	29 Watt
Compliant Standards	RoHS
Service & Support	Limited warranty - 2 years
