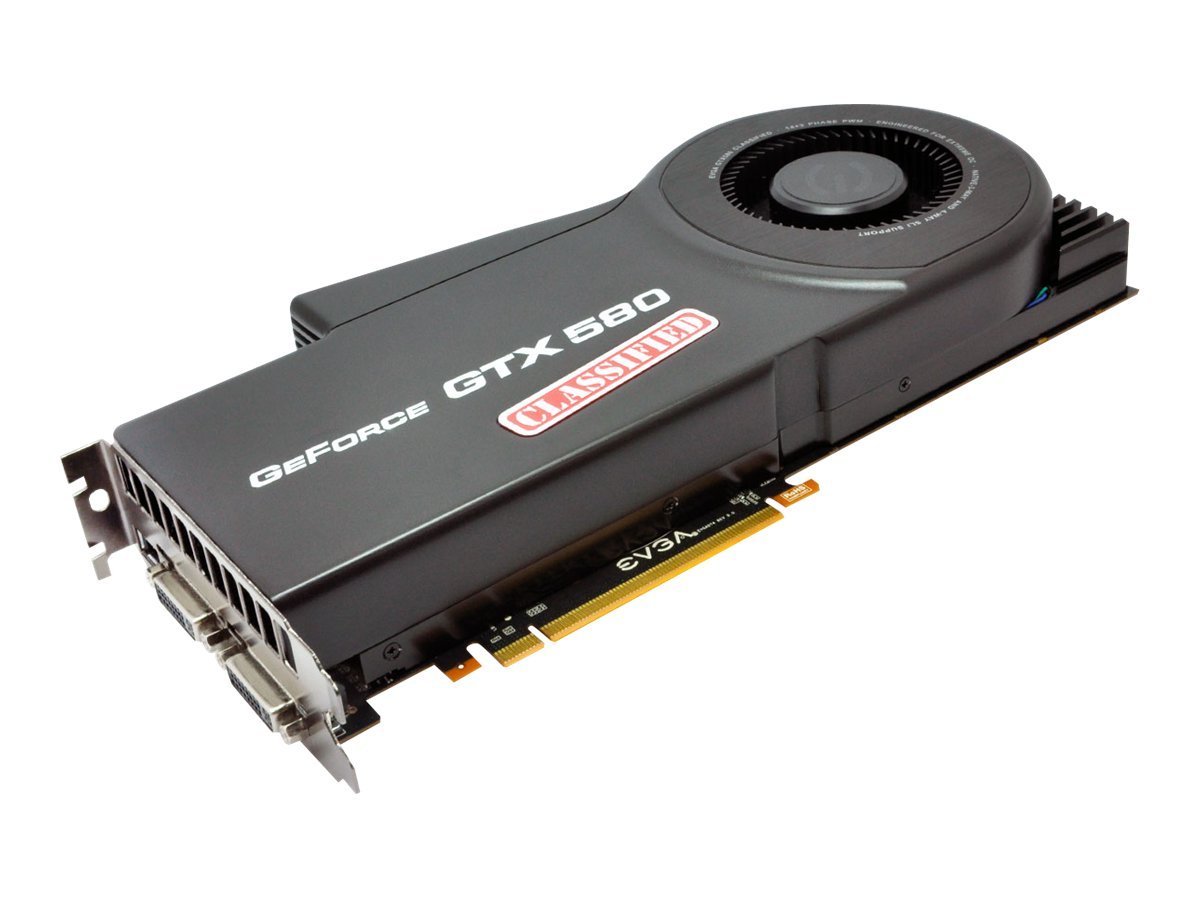

| GENERAL | EVGA GeForce GTX 580 (3 GB, 855 MHz) | - |
|---|
| Product Type | Graphics card | - |
|---|---|---|
| Bus Type | PCI Express 2.0 x16 | - |
| Graphics Engine | NVIDIA GeForce GTX 580 | - |
| Max. Resolution | 2560 x 1600 at 240 Hz | - |
| Max. Resolution Details | DVI: 2560 x 1600 / VGA: 2048 x 1536 | - |
| Interfaces | 2 x DVI-I (dual link) | - |
| API Supported | DirectX 11, OpenCL, DirectCompute 5.0, OpenGL 4.1 | - |
| Features | Nvidia 3-way SLI ready, Nvidia CUDA technology, Nvidia PureVideo HD technology, Nvidia PhysX-Ready, Nvidia 3D Vision Surround Ready, Nvidia 2-way SLI ready, Nvidia 4-way SLI ready, HDCP | - |
| DIMENSIONS |
|---|
| Height | 138 mm | - |
|---|---|---|
| Depth | 280 mm | - |
| Weight | 1.4 kg | - |
| PERFORMANCE | EVGA GeForce GTX 580 (3 GB, 855 MHz) | - |
|---|
| Core Clock (Frequency) | 855 MHz | - |
|---|---|---|
| Shader Clock | 1710 MHz | - |
| CUDA Cores | 512 | - |
| MEMORY (RAM) | EVGA GeForce GTX 580 (3 GB, 855 MHz) | - |
|---|
| RAM Memory Size | 3 GB | - |
|---|---|---|
| RAM Technology | GDDR5 SDRAM | - |
| Effective Clock Speed (Frequency) | 4.212 GHz | - |
| Bus Width | 384-bit | - |
| SYSTEM REQUIREMENTS | EVGA GeForce GTX 580 (3 GB, 855 MHz) | - |
|---|
| OS Required | Microsoft Windows Vista / XP / 7 | - |
|---|---|---|
| Required Power Supply | 600 W | - |
| Additional Requirements | Adjacent PCI slot | - |
| MISCELLANEOUS | EVGA GeForce GTX 580 (3 GB, 855 MHz) | - |
|---|
| Cables Included | 1 x HDMI-DVI adapter 1 x DVI-VGA adapter 1 x 6 pin PCI Express power modular cable 1 x 8 pin PCI Express power with detachable 2 pin section modular cable |
- |
|---|---|---|
| Software Included | Drivers & Utilities, EVGA Precision, EVGA OC Scanner | - |
| Service & Support | Limited warranty - 10 years | - |
