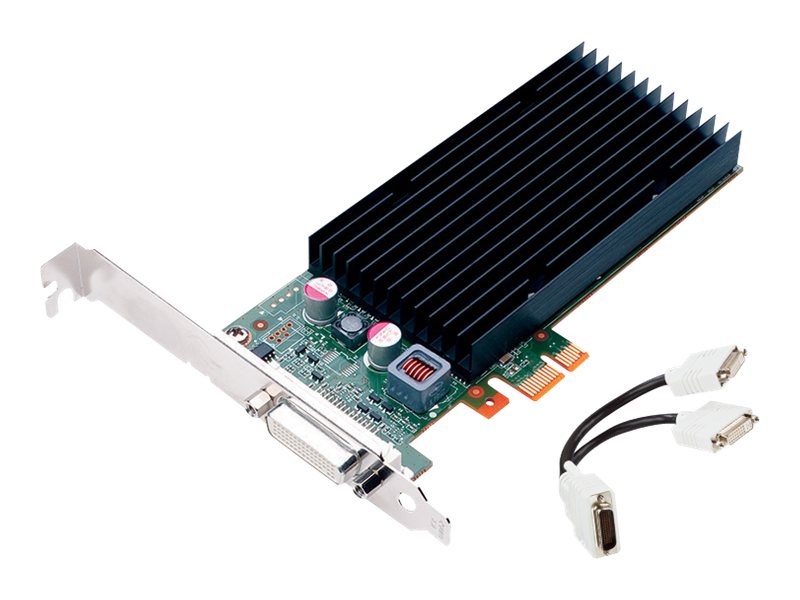

NVIDIA Quadro NVS 300 by PNY (PCI Express 2.0 x1) Specifications, Tests and Review

Memory Size
512 MB

Memory Type
DDR3 SDRAM

Bus Width
64-bit

Max. Resolution
2048 x 1536 at 85 Hz

Other Variants::

A detailed list of technical data, specifications, benchmarks and expert review of NVIDIA Quadro NVS 300 by PNY (PCI Express 2.0 x1). Get a comprehensive look at your chosen video card and see if this is the one that will best suit your needs. You can also use the comparison feature to compare with other competing GPUs

NVIDIA Quadro NVS 300 by PNY (PCI Express 2.0 x1) Full Specifications and Benchmark

general memory (ram) system requirements video output miscellaneous

GENERAL NVIDIA Quadro NVS 300 by PNY (PCI Express 2.0 x1)

Product Type	Graphics card - low profile
Bus Type	PCI Express 2.0 x1
Graphics Engine	NVIDIA Quadro NVS 300
Max. Resolution	2048 x 1536 at 85 Hz
Max. Resolution Details	DVI: 2560 x 1600 / DisplayPort: 2560 x 1600 / VGA: 2048 x 1536
Max. Monitors Supported	2
RAMDAC	400 MHz
Interfaces	2 x DVI-I (DMS-59) 2 x VGA - with adapter
API Supported	DirectX 10.1, OpenGL 3.3
Features	NVIDIA Unified Driver Architecture (UDA), Nvidia nVIEW Multi-Display Technology, Nvidia CUDA technology, NVIDIA Mosaic, HDCP

DIMENSIONS

Height	6.9 cm
Depth	14.5 cm

MEMORY (RAM) NVIDIA Quadro NVS 300 by PNY (PCI Express 2.0 x1)

RAM Memory Size	512 MB
RAM Technology	DDR3 SDRAM
Bus Width	64-bit

SYSTEM REQUIREMENTS NVIDIA Quadro NVS 300 by PNY (PCI Express 2.0 x1)

OS Required	Linux, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits)

VIDEO OUTPUT NVIDIA Quadro NVS 300 by PNY (PCI Express 2.0 x1)

Supported Display Graphics	WUXGA (1920 x 1200), 2560x1600

MISCELLANEOUS NVIDIA Quadro NVS 300 by PNY (PCI Express 2.0 x1)

Included Accessories	Low-profile bracket, full-height bracket
Cables Included	1 x DMS-59 to 2 x DVI adapter 2 x DVI-VGA adapter
Software Included	Drivers & Utilities
ENERGY STAR Certified	Yes
Service & Support	Limited warranty - 3 years
