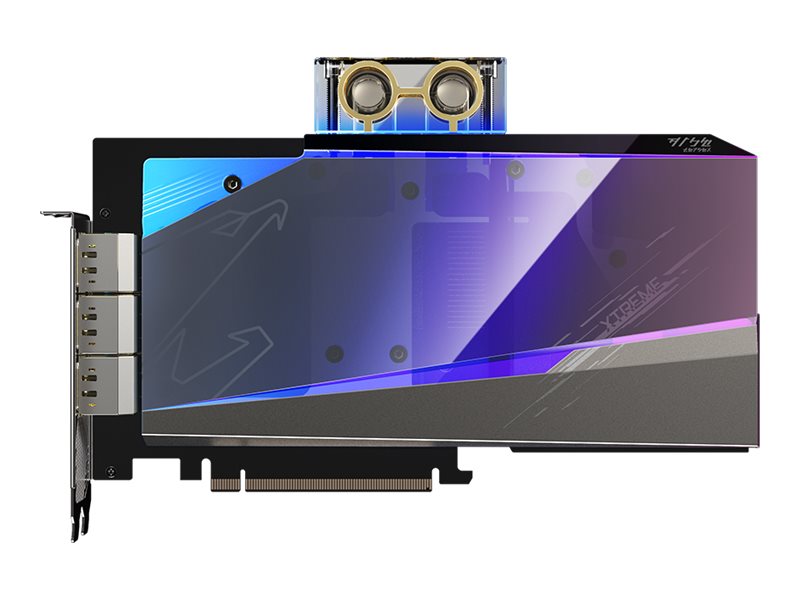

Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB (12 GB) Specifications, Tests and Review

Memory Size
12 GB

Memory Type
GDDR6X SDRAM

Effective Memory Speed
19000 MHz

Bus Width
384-bit

CUDA Cores
8960

Core Clock
1830 MHz

Max. Resolution
7680 x 4320

Required Power Supply
750 W

Other Variants::

Get the key specs, technical data, benchmarks and full review of Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB (12 GB) all in one place. Compare your selected model with other alternatives and give your decision on the best GPU a solid base with our comprehensive overview.

Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB (12 GB) Full Specifications and Benchmark

general performance memory (ram) system requirements miscellaneous

GENERAL Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB (12 GB)

Product Type	Graphics card
Bus Type	PCI Express 4.0 x16
Graphics Engine	NVIDIA GeForce RTX 3080
Max. Resolution	7680 x 4320
Max. Monitors Supported	4
Interfaces	3 x DisplayPort 3 x HDMI
API Supported	OpenGL 4.6, DirectX 12 Ultimate
Features	WATERFORCE: WATERFORCE Water Block cooling system, AORUS Graphics Engine, RGB Fusion 2.0, liquid cooling system (1/4" fittings), NVIDIA Ampere GPU technology, 2nd gen Ray Tracing Cores, 3rd gen Tensor Cores, leak detection, metal backplate

DIMENSIONS

Height	16.3 cm
Width	2.9 cm
Depth	25.2 cm

PERFORMANCE Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB (12 GB)

Core Clock (Frequency)	1830 MHz
CUDA Cores	8960

MEMORY (RAM) Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB (12 GB)

RAM Memory Size	12 GB
RAM Technology	GDDR6X SDRAM
Effective Clock Speed (Frequency)	19000 MHz
Bus Width	384-bit
Bandwidth	912 GBps

SYSTEM REQUIREMENTS Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB (12 GB)

Required Power Supply	750 W
Additional Requirements	2 x 8 pin PCI Express power connector

MISCELLANEOUS Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB (12 GB)

Included Accessories	Thermal grease, AORUS metal sticker, Xtreme robot limited edition
Software Included	AORUS Engine
Compliant Standards	DisplayPort 1.4a
Service & Support	Limited warranty - 4 Years
