EVGA GeForce GT 1030 (PCI Express 3.0) Specifications, Tests and Review

Memory Size
2 GB

Memory Type
GDDR4 SDRAM

Effective Memory Speed
2.1 GHz

Bus Width
64-bit

CUDA Cores
384

Core Clock
1189 MHz

Max. Resolution
3840 x 2160

Required Power Supply
300 W

Power Consumption
30 Watt

Other Variants::

Complete technical specifications, details, benchmarks and review of EVGA GeForce GT 1030 (PCI Express 3.0). Find out how your chosen graphics card stacks up against the competition and whether it's the one that best meets your expectations with the GPU comparison feature.

EVGA GeForce GT 1030 (PCI Express 3.0) Full Specifications and Benchmark

general performance memory (ram) system requirements miscellaneous

GENERAL EVGA GeForce GT 1030 (PCI Express 3.0)

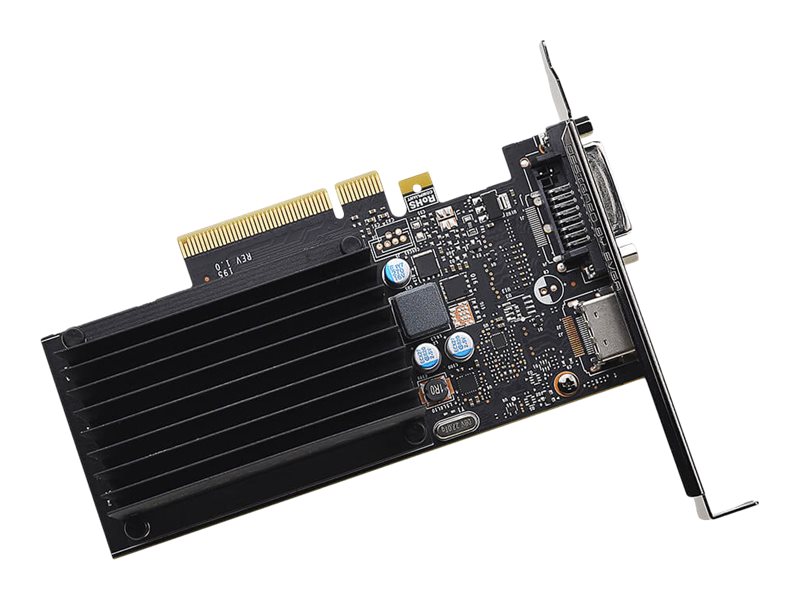

Product Type	Graphics card - low profile - fanless
Bus Type	PCI Express 3.0
Graphics Engine	NVIDIA GeForce GT 1030
Max. Resolution	3840 x 2160
Max. Monitors Supported	2
Interfaces	DVI-D HDMI
API Supported	DirectX 12, OpenGL 4.5, Vulkan
Features	NVIDIA GameWorks, NVIDIA GPU Boost 3.0, NVIDIA Pascal GPU technology

DIMENSIONS

Height	6.88 cm
Depth	14.48 cm

PERFORMANCE EVGA GeForce GT 1030 (PCI Express 3.0)

Core Clock (Frequency)	1189 MHz
Boost Clock	1430 MHz
CUDA Cores	384

MEMORY (RAM) EVGA GeForce GT 1030 (PCI Express 3.0)

RAM Memory Size	2 GB
RAM Technology	GDDR4 SDRAM
Effective Clock Speed (Frequency)	2.1 GHz
Bus Width	64-bit
Bandwidth	16.8 GBps

SYSTEM REQUIREMENTS EVGA GeForce GT 1030 (PCI Express 3.0)

OS Required	Microsoft Windows 7 / 8 / 10 (32/64 bits)
Required Power Supply	300 W

MISCELLANEOUS EVGA GeForce GT 1030 (PCI Express 3.0)

Included Accessories	Low-profile bracket
Software Included	EVGA Precision X OC
Power Consumption Operational	30 Watt
Service & Support	Limited warranty - 3 years
