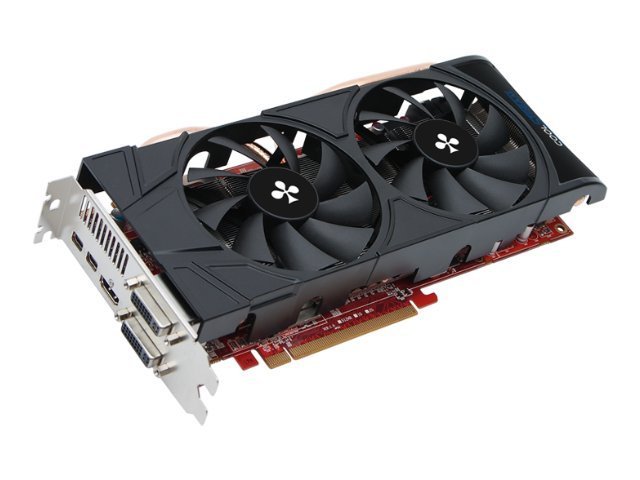

Club 3D Radeon HD 6950 (2 GB) Specifications, Tests and Review

Memory Size
2 GB

Memory Type
GDDR5 SDRAM

Effective Memory Speed
5 GHz

Bus Width
256-bit

Stream Processors
1408

Core Clock
800 MHz

Max. Resolution
2560 x 1600

Required Power Supply
700 W

Power Consumption
200 Watt

Other Variants::

A detailed list of technical data, specifications, benchmarks and expert review of Club 3D Radeon HD 6950 (2 GB). Get a comprehensive look at your chosen video card and see if this is the one that will best suit your needs. You can also use the comparison feature to compare with other competing GPUs

Club 3D Radeon HD 6950 (2 GB) Full Specifications and Benchmark

general performance memory (ram) system requirements miscellaneous

GENERAL Club 3D Radeon HD 6950 (2 GB)

Product Type	Graphics card
Bus Type	PCI Express 2.1 x16
Graphics Engine	AMD Radeon HD 6950
Max. Resolution	2560 x 1600
Max. Resolution Details	DVI: 2560 x 1600 / VGA: 2048 x 1536
RAMDAC	400 MHz
Interfaces	DVI-I (dual link) DVI-D (Single-Link) HDMI 2 x Mini DisplayPort
API Supported	DirectX 11, OpenGL 4.1
Features	Dual Slot Fan Cooler, AMD Eyefinity Technology, AMD HD3D Technology, AMD Accelerated Parallel Processing (APP) Technology, AMD Eyespeed, AMD PowerPlay technology, AMD CrossFireX Technology, AMD Eye-Definition, AMD Unified Video Decoder (UVD) 3, CoolStream, HDCP

DIMENSIONS

Height	11.5 cm
Width	3.7 cm
Depth	27.5 cm
Weight	0.67 kg

PERFORMANCE Club 3D Radeon HD 6950 (2 GB)

Core Clock (Frequency)	800 MHz
Stream Processors	1408

MEMORY (RAM) Club 3D Radeon HD 6950 (2 GB)

RAM Memory Size	2 GB
RAM Technology	GDDR5 SDRAM
Effective Clock Speed (Frequency)	5 GHz
Bus Width	256-bit

SYSTEM REQUIREMENTS Club 3D Radeon HD 6950 (2 GB)

OS Required	Microsoft Windows XP, Microsoft Windows XP 64-bit Edition, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows 7 64-bit Edition, Microsoft Windows Vista (64-bit versions)
System Requirements Details	Windows XP/Vista/7 RAM 1 GB
Required Power Supply	700 W
Additional Requirements	Adjacent PCI slot, two 6-pin power connectors

MISCELLANEOUS Club 3D Radeon HD 6950 (2 GB)

Included Accessories	CrossFire bridge
Software Included	Driver, Battlefield 3 (free download)
Power Consumption Operational	200 Watt
