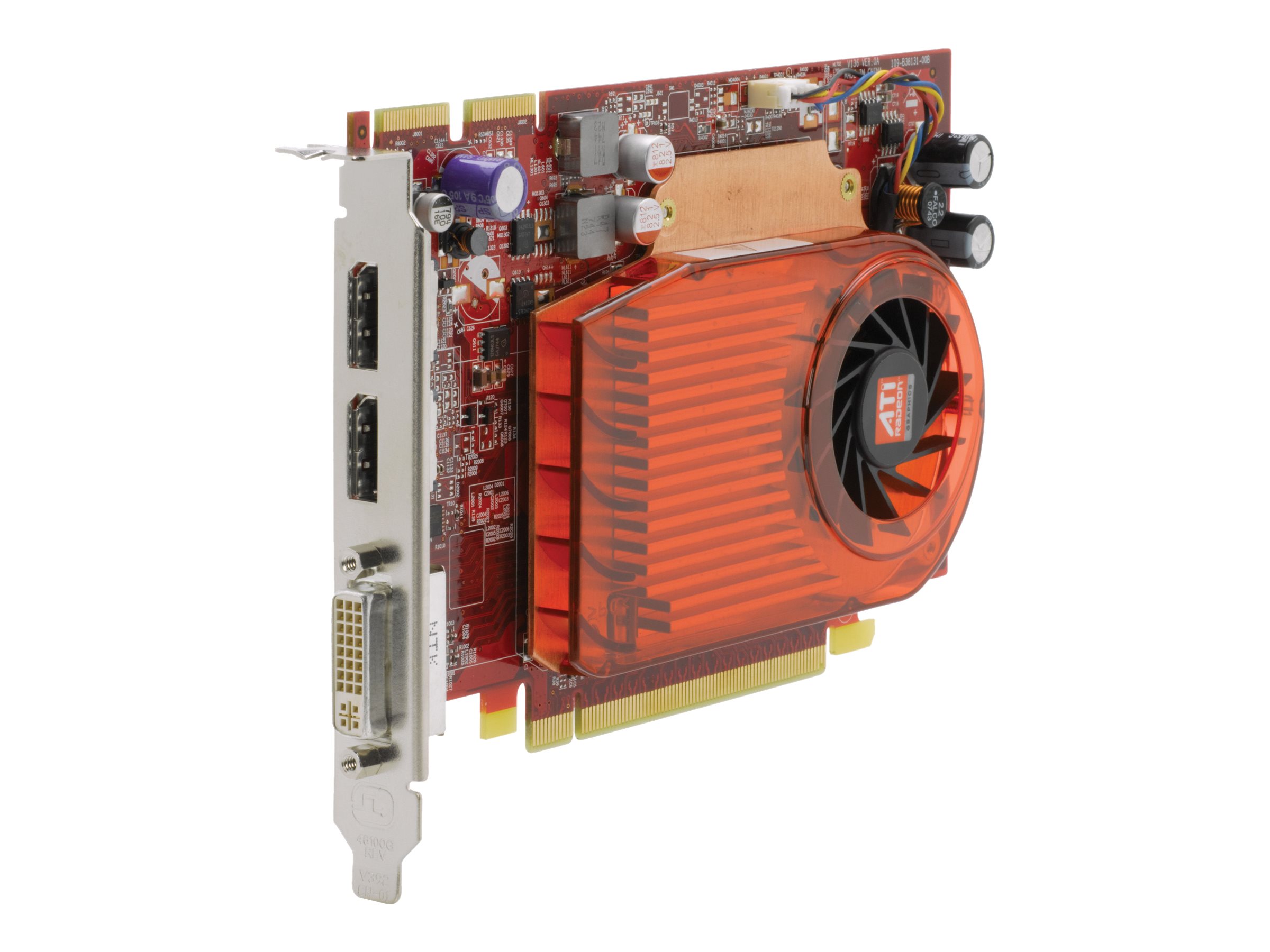

ATI Radeon HD 3650 (512 MB, 600 MHz) Specifications, Tests and Review

Memory Size
512 MB

Memory Type
DDR2 SDRAM

Effective Memory Speed
500 MHz

Bus Width
128-bit

Core Clock
600 MHz

Max. Resolution
2560 x 1600

Other Variants::

A detailed list of technical data, specifications, benchmarks and expert review of ATI Radeon HD 3650 (512 MB, 600 MHz). Get a comprehensive look at your chosen video card and see if this is the one that will best suit your needs. You can also use the comparison feature to compare with other competing GPUs

ATI Radeon HD 3650 (512 MB, 600 MHz) Full Specifications and Benchmark

general performance memory (ram) system requirements video output miscellaneous

GENERAL ATI Radeon HD 3650 (512 MB, 600 MHz)

Product Type	Graphics card
Bus Type	PCI Express x16
Graphics Engine	ATI Radeon HD 3650
Max. Resolution	2560 x 1600
Max. Resolution Details	DVI: 2560 x 1600 at 60 Hz / VGA: 2048 x 1536 at 75Hz
Max. Monitors Supported	2
RAMDAC	400 MHz
Interfaces	1 x DVI-I (dual link) 2 x DisplayPort - 20 pin DisplayPort
API Supported	OpenGL 2.0, DirectX 10.1
Features	Avivo Technology

DIMENSIONS

Height	5.7 cm
Width	19.1 cm
Depth	24.1 cm
Weight	0.59 kg

PERFORMANCE ATI Radeon HD 3650 (512 MB, 600 MHz)

Core Clock (Frequency)	600 MHz

MEMORY (RAM) ATI Radeon HD 3650 (512 MB, 600 MHz)

RAM Memory Size	512 MB
RAM Technology	DDR2 SDRAM
Effective Clock Speed (Frequency)	500 MHz
Bus Width	128-bit

SYSTEM REQUIREMENTS ATI Radeon HD 3650 (512 MB, 600 MHz)

OS Required	Linux, Microsoft Windows XP Home Edition, Microsoft Windows XP Professional, Microsoft Windows Vista Home Basic, Microsoft Windows Vista Business (32/64 bits)

VIDEO OUTPUT ATI Radeon HD 3650 (512 MB, 600 MHz)

Supported Display Graphics	VGA (640x480), XGA (1024x768), SVGA (800x600), SXGA (1280x1024), UXGA (1600x1200), HDTV (1920x1080), QXGA (2048x1536), WUXGA (1920 x 1200), 1920x1440, HD (1280 x 720), 1440x900, WSXGA+ (1680 x 1050), 2560x1600

MISCELLANEOUS ATI Radeon HD 3650 (512 MB, 600 MHz)

Cables Included	1 x DVI-VGA adapter 1 x DisplayPort-DVI adapter
Compliant Standards	VCCI, C-Tick, BSMI, CISPR 24, ICES-003, CISPR 22, FCC Part 15, MIC
Service & Support	Limited warranty - replacement - 1 year
